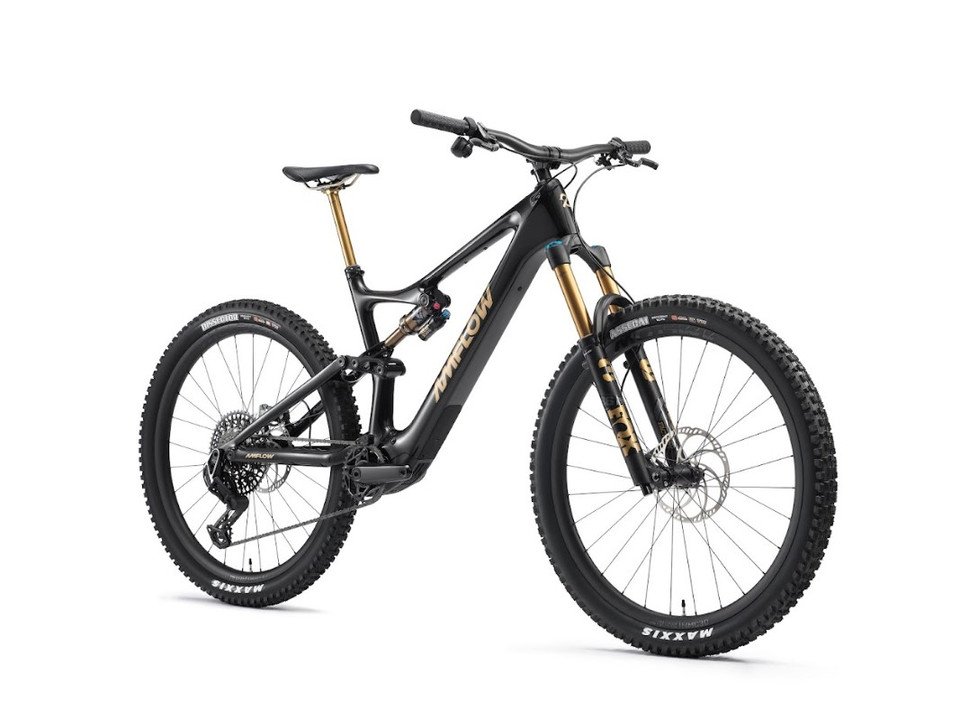

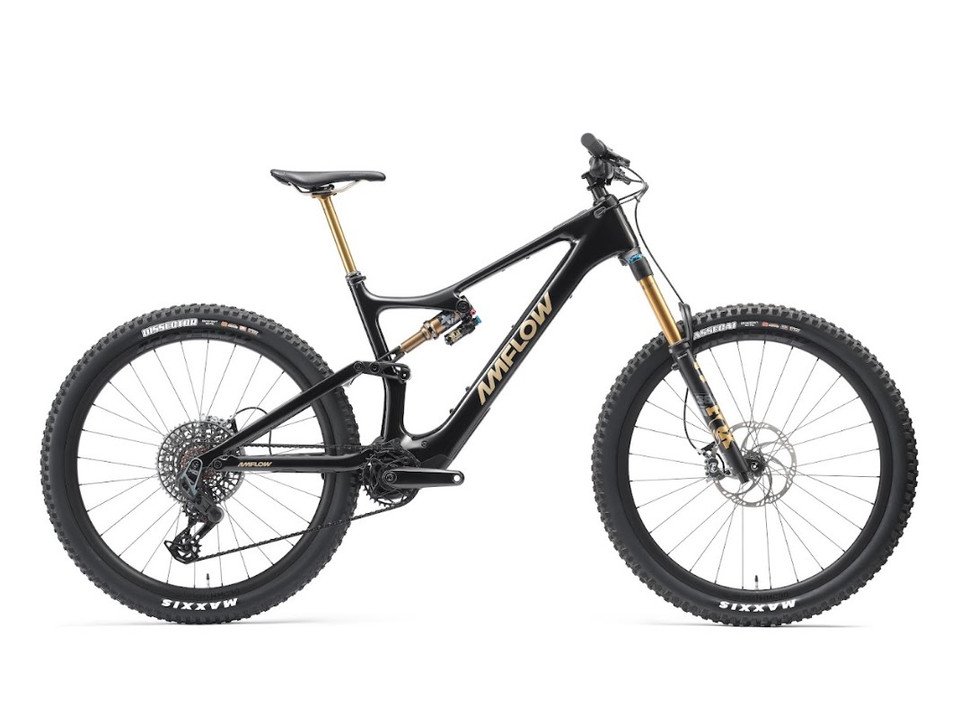

Amflow PL Carbon Pro (800Wh) 2026 – Cosmic Black
Amflow PL – Power To The peak
Prepare to push the boundaries of possibility with the Amflow PL Carbon Pro (800 Wh) 2026, a full-suspension lightweight electric mountain bike that sets a new standard for performance and innovation in the enduro world. Weighing in at a mere 20.1kg and delivering a staggering 120Nm of peak torque, the Amflow PL is poised to revolutionise the way you ride with unmatched power and agility
The Amflow PL’s ultra-light carbon fiber frame, tipping the scales at just 2.27 kg, delivers a breathtaking combination of speed and agility. This featherweight frame ensures that every climb is conquered with ease and every descent is met with confidence, allowing you to push harder and ride longer than ever before.
Powerful Drive, Smooth Assistance
Designed and manufactured by DJI, the Avinox Drive System is seamlessly integrated into Amflow PL, infusing the type of cutting-edge hardware and software that has made DJI an industry leader in drones and camera stabilization technology. The Avinox Drive Unit features a compound planetary gearset with an industry-leading power-to-size ratio.
The durable, high-strength polymer material inside the Drive Unit effectively suppresses noise during high-speed gearbox operation. With multiple precision sensors built-in, combined with advanced DJI algorithms, it provides a strong, smooth assistance for a wide range of scenarios and conditions.
Unmatched power and agility
Max Continuous Torque – 105 N·m
Drive Unit Weight – 2.52 kg
Peak Power – 850 W
High-Capacity Battery, Extended Range
The Avinox Drive System’s battery weighs just 2.87kg and features ultra-high energy density for extended range.
Intelligent Battery Health, Extended Service Life
Amflow PL features a battery health management system for real-time monitoring, self-discharge, active voltage reduction, and abnormality alerts. Batteries are durable and reliable. After 500 full charge-discharge cycles, the battery still maintains 80% of its initial capacity.
Built-in Display, Smartphone Connectivity
The brain of the DJI Avinox Drive System is the Control Display. This 2-inch full-color OLED touchscreen is integrated directly into the frame. It displays real-time ride data and estimated range, and enables quick changes of the display content with a simple slide.
What is the weight of the Amflow PL Carbon Pro (800Wh) 2026?
Weighing in at a mere 20.1kg, this sleek model defies expectations for a bike boasting such a powerful motor and a massive battery.
Geometry
| M | L | XL | XXL | |
|---|---|---|---|---|
| A Reach | 452 mm | 475 mm | 500 mm | 525 mm |
| B Stack Height | 618 mm | 628 mm | 641 mm | 655 mm |
| C Standover Height | 780 mm | 785 mm | 790 mm | 795 mm |
| D Front Center | 782 mm | 810 mm | 844 mm | 873 mm |
| E Fork Length | 570 mm | 570 mm | 570 mm | 570 mm |
| F Wheelbase | 1227 mm | 1266 mm | 1289 mm | 1318 mm |
| G Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| H Bottom Bracket Drop | 29 mm | 29 mm | 29 mm | 29 mm |
| I Bottom Bracket Height | 345.5 mm | 345.5 mm | 345.5 mm | 345.5 mm |
| J Effective Top Tube Length | 594.7 mm | 620.1 mm | 648.2 mm | 676.3 mm |
| K Head Tube Angle | 64.5° | 64.5° | 64.5° | 64.5° |
| L Head Tube Length | 105 mm | 115 mm | 130 mm | 145 mm |
| M Actual Seat Tube Angle | 70° | 70° | 70° | 70° |
| N Effective Seat Tube Angle | 77° | 77° | 77° | 77° |
| O Seat Tube Height | 430 mm | 450 mm | 470 mm | 490 mm |
